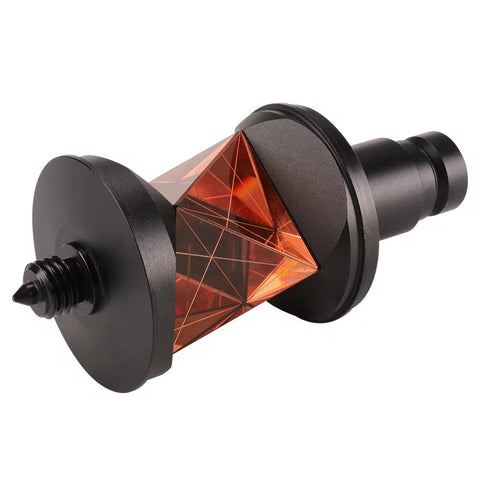

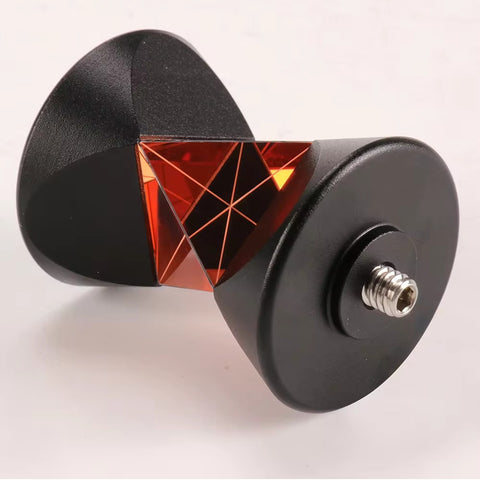

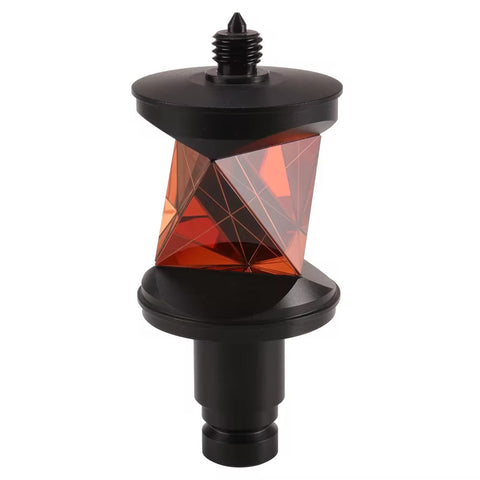

Precision Prism Assembly: The Leica GRZ4S 360° Prism is composed of six mini prisms securely glued together, providing comprehensive 360° measurement capability with a prism constant of +23.1mm (Swiss Constant).

Robust Metal Design: Leica GRZ4S 360° Prism Designed with a durable metal construction, the GRZ4S Prism ensures reliability and longevity in various surveying environments, making it suitable for robotic Total Station (TPS) work.

Mutoop GRZ4S 360° Prism Equipped with a 5/8"-11 threaded top for antenna installation and featuring a quick release push button connection, the GRZ4S Prism offers versatility and ease of setup with compatible survey poles.

Mutoop GRZ4S 360° Prism Offers an overall 3D pointing accuracy of 5.0mm, with the capability to achieve better than 2.0mm accuracy when aiming directly at prisms marked by yellow arrows. This precision supports meticulous surveying tasks.

ATR Range and Protective Features: The GRZ4S Prism boasts an ATR range of 600m (2000ft) and includes large rubber mountings that protect the prism against impacts if the survey pole falls over. It is supplied in a padded case for safe transportation.

Leica GRZ4S 360° Prism Parameter Specification Table:

Model	GRZ4S
For Total Station	Leica
Height Offset	86.0mm
Prism Constant	+23.1mm
Beam Deviation	5arcsec
Mount	5/8" Leica
Coating	Copper
Carrying Bag	Yes

Leica GRZ4S 360° Prism – High Precision Reflector Prism for Robotic Total Stations
