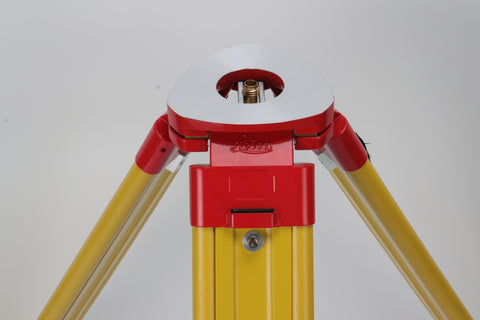

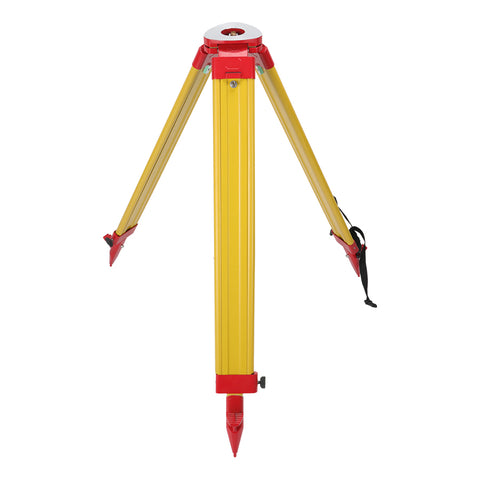

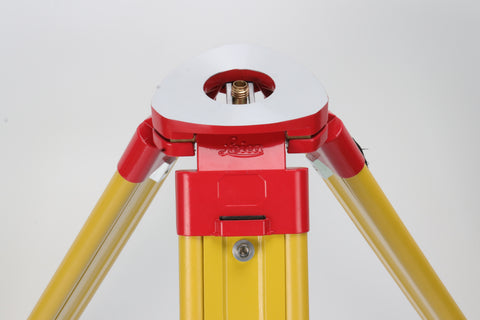

The GST20-9 Wooden Tripod is a heavy-duty tripod designed for robust support of surveying instruments. Featuring a triangular flat head with a size of 145mm and a head bore of 63.50mm, this tripod provides a stable base for precise measurements. The tripod's height ranges from a minimum of 108.5cm (42.7") to a maximum of 179cm (70.5"), with a 5/8" connecting screw that fits most surveying instruments. The strong wing-nut locking mechanism ensures long-lasting secure gripping, while the metal pointed tip-toes provide stability on various surfaces, including hard, slippery, soft, wet, and rugged terrains. The tripod comes with a robust poly-webbing shoulder carrying strap for easy and quick transport, along with an ABS dust cover to protect the tripod head from scratches or damage. The tool kit includes a hex key for instant repairs.

Flat-headed heavy-duty wooden tripod for heavy-duty surveying instruments
Round telescoping legs offering sturdy support and desired working heights
Strong wing-nut locking mechanism for long secure gripping and stable support
Metal pointed tip-toe for hard, slippery, soft, wet, and rugged surfaces
Universal 5/8" thread ideal for most surveying instruments (Robotic Stations, Scanners...)
Robust poly-webbing shoulder carrying strap for easy and quick carrying
Equipped with ABS dust cover (head protective cap) to protect the tripod head from scratches or damage

Comes with a tool kit (hex key) for instant repairs

Head Type	Triangular Flat (F)
Lock Style	Wing Nut (Twist Lock, Screw Lock)
Head Size	145mm
Head Bore	63.50mm
Minimum Height	108.5cm (42.7")
Maximum Height	179cm (70.5")
Connecting Screw	5/8"

GST20-9 Survey Durability Wooden Tripod Hardware for Swiss-Style
